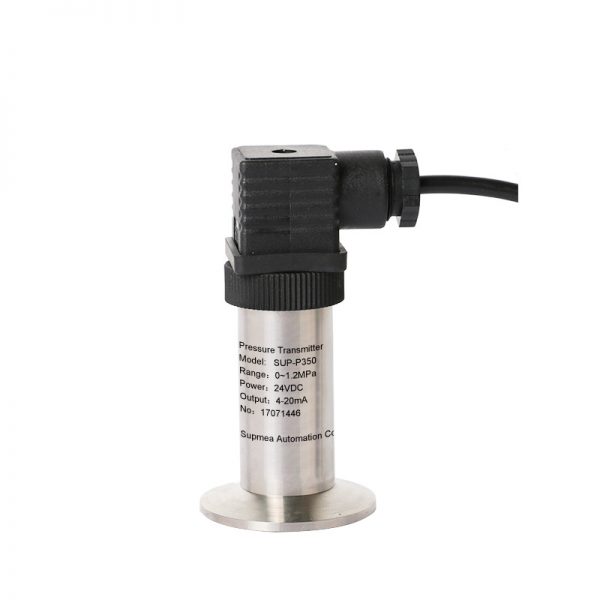

SUP-P350 Hygienic pressure transmitter
Applications: SUP-P350 is a piezoresistive pressure sensor with compact design and stainless steel body SS304 and SS316L diaphragm , can work in the non-causticity environment, with 4-20mA signal output. P300 series is widely applied in pressure measurement for aviation, aerospace, automobile, medical treatment equipment, HVAC etc.
- Description
Description
Specification
| Product | Pressure transmitter |
| Model | SUP-P350 |
| Measure range | -0.1~0 to 0 ~ 40MPa |
| Indication resolution | 0.5% |
| Ambient temperature | -10 ~ 85 ℃ |
| Output signal | 4-20ma analog output |
| Pressure type | Gauge pressure; Absolute pressure |
| Measure medium | Liquid; Gas; Oil etc |
| Pressure overload | 150%FS |
| Power | DC24 (12-36V) |
Introduction
SUP-P350 Hygienic pressure transmitter
